Digital Coating Thickness Gauge tester UA5169

0~1300um UA5169 galvanized coating thickness gauge

Description :

 The coating thickness gauge is designed for non-destructive, fast and precise coating thickness measurement. It works either on the magnetic induction principle or on the eddy current principle, depending on the type of probe used. This gauge has internal F probe and N probe.

F probe can be used for non-magnetic coatings such as aluminium, chrome, copper, zinc, paint and varnish,enamel, rubber etc., on an iron or steel substrate; It is also suitable foralloyed and hardened magnetic steel(however, not suitable for austenic steel).

N probe can be used for insulating coatings e.g. paint, anodizing,ceramics, etc., on all non-ferrous metals such as aluminium, copper, zinc die casting, brass etc. and on austenitic stainless steels.

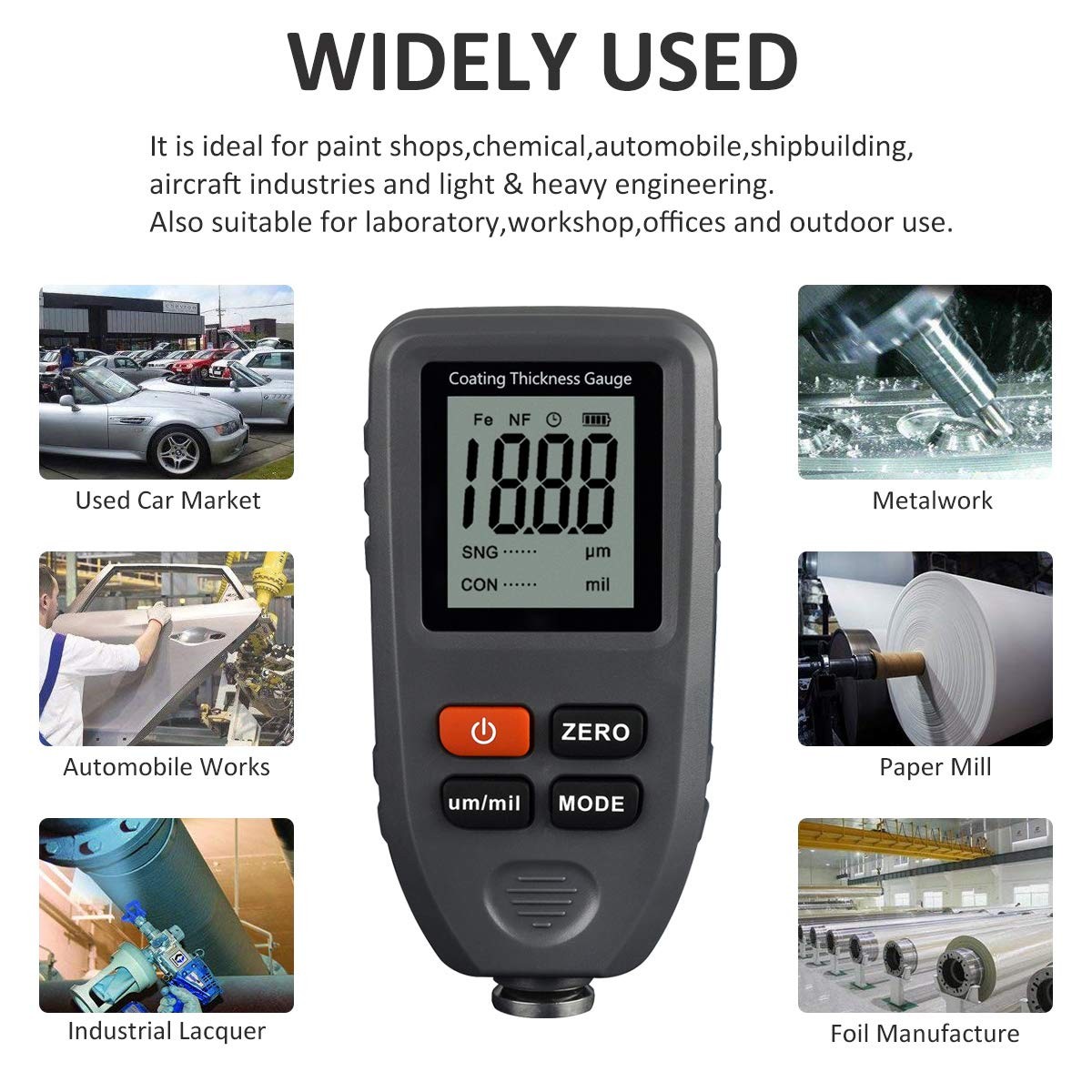

It is ideal for manufacturers and their customers, for offices and specialist advisers, for paint shops and electroplaters, for the chemical, automobile, ship building and aircraft industries and for heavy engineering. It is suitable for laboratory, workshop and outdoor use.



Features:

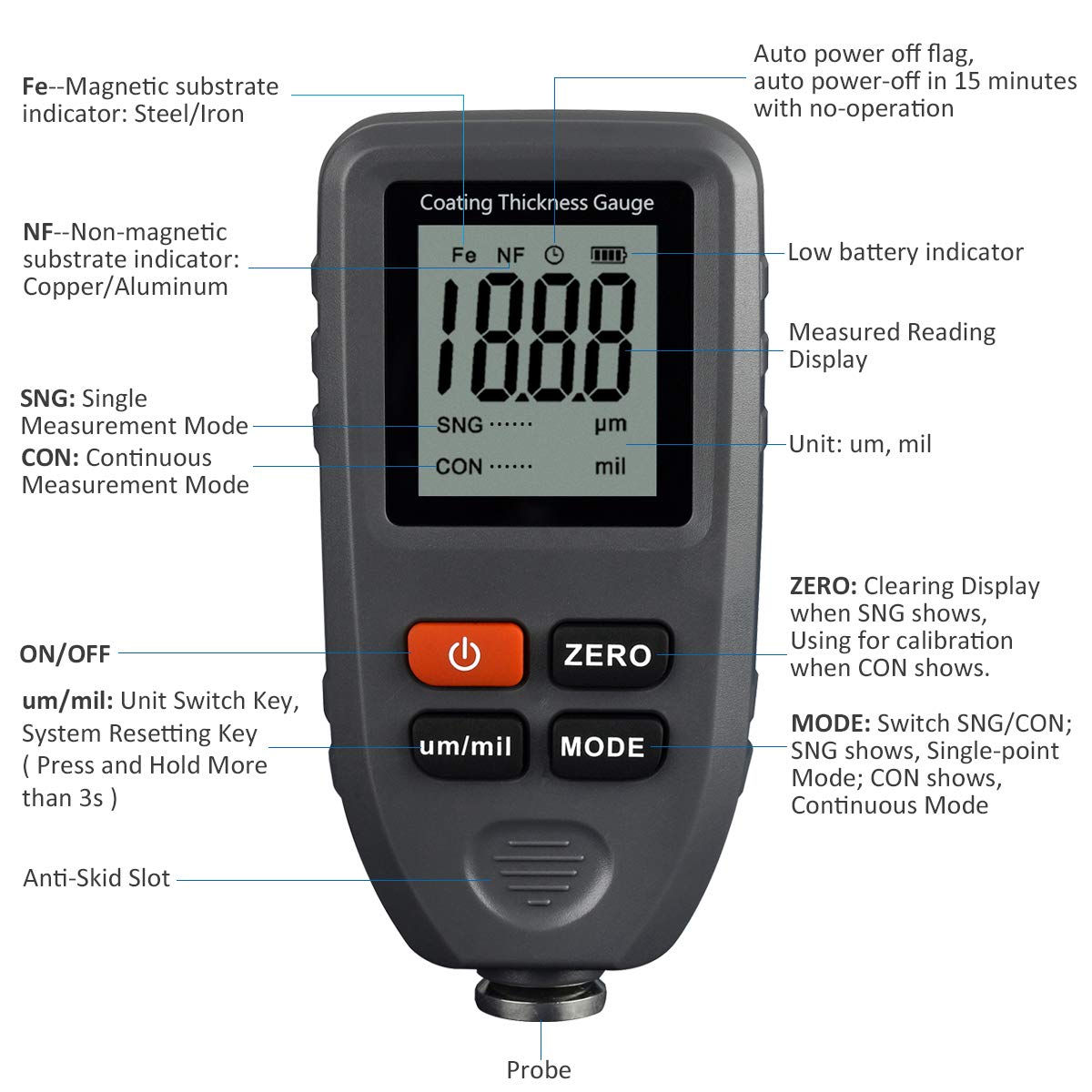

1.  128*128 dot matrix LCD display, standard menu operations;

2.  Two measure mode: single and continuous;

3.  Two group mode:direct(DIR) and general(GEN), readings will be lost when power off in direct mode, and not be lost in general mode. 80 readings can be stored for each group;

4.  Zero point calibration and multi-point calibration(up to 4 points) for each group;

5.  User can recall, delete specified readings, or delete group readings;

6.  Statistics display: mean, minimum, maximum and standard deviation;

7.  Three probe mode:auto, magnetic and eddy current;

8.  User can set high or low limit alarm for each group;

9.  Power off automatically;

10. USB interface to data transmission;

11. Low battery and error indication.


Specifications:




Probe F

Probe N

Principle

Magnetic Induction

Eddy Current

Range

0~1300um

0~51.2mil

0~1300um

0~51.2mil

Accuracy

±(3%+2um)

±(3%+0.08mil)

±(3%+2um)

±(3%+0.08mil)

Resolution

0.1um/0.01mil

0.1um/0.01mil

Calibration

Points: ZERO/50/100/250/500/1000um

Units

um, mil

minimum curvature radius convex: 1.5mm

minimum curvature radius concave: 25mm

minimum measuring area: Diameter 6mm

minimum thickness of substrate

0.5mm(0.02”)

0.3mm(0.012”)

Power

One 9V battery

Operation Environment

Temperature:0~40℃(32~104℉) Humidity:20%~90%RH

Size

130mm x 62mm x 32mm

(4.88” x 2.44” x 1.26”)

Weight

100g(3.53oz)



1. Measuring principle: Magnetic induction (F-probe) and eddy current (N-probe);

2. Measuring range: 0 to 1300um

3. Accuracy: ± (2.5% of readings+1um);

                       ± (3% of readings+0.078mils);

4. Resolution: 0um~900um (1um), 900um~1300um (0.01mm);

5. Calibration: One to four point calibration, zero calibration;

6. Data Group: One direct group (readings not be stored to memory), four general group (readings can be stored), and each group have individual statistics, alarm settings and calibration;

7. Statistics: No. of readings, mean, minimum, maximum and standard deviation;

8. Units: um, mm and mils;

9. Alarm: User can set the high/low alarm, and alarm icon displayed on LCD when over the limit;

10. Minimum curvature radius: convex 1.5mm(59mils) and concave 25mm(984mils);

11. Minimum measuring size: Diameter 6mm(236mils);

12. Minimum thickness of substrate: F-probe: 0.5mm(0.02"), N-probe: 0.3mm(0.012");

13.Computer interface: Download data via USB interface;

14. Power supply: Two 1.5v AAA battery;

15. Operation temperature: 0°C to 40°C(32°F to 104°F);

16. Storage temperature: -20°C to 70°C(-4°F to 158°F);

17. Size: 110mm*53mm*24mm (4.33"*2.09"*0.94");

18. Weight: 100g ;

 NOTE: not included batteries.
